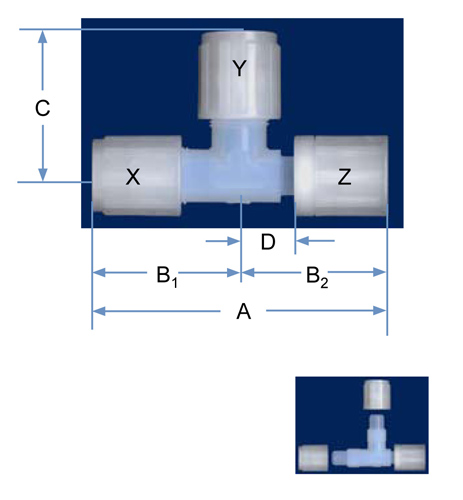

For “D” Dimension 4T = .66, 8T = .73, 12T = .87, 16T = 1.27,T = Tight Flare,Flares 1/4” to 3/4” have close tolerance technology,i.e., location from centerline+/- 0.005”. 1” flares have a tolerance of +/-0.03”

PFA Part No.	X	Y	Z	Orifice	A	B1	B2	C
UT4-4-4TN-1	1/4	1/4	1/4	.15	3.29	1.65	1.64	1.65
UT4-8-8TN-1	1/4	1/2	1/2	.15	3.50	1.65	1.85	1.86
UT6-4-6TN-1	3/8	1/4	3/8	.15	3.49	1.76	1.73	1.65
UT6-6-6TN-1	3/8	3/8	3/8	.25	3.49	1.76	1.73	1.76
UT6-12-12TN-1	3/8	3/4	3/4	.25	3.89	1.76	2.13	2.18
UT8-4-8TN-1	1/2	1/4	1/2	.15	3.71	1.86	1.85	1.65
UT8-6-8TN-1	1/2	3/8	1/2	.25	3.71	1.86	1.85	1.76
UT8-8-6TN-1	1/2	1/2	3/8	.25	3.59	1.86	1.73	1.86
UT8-8-8TN-1	1/2	1/2	1/2	.38	3.71	1.86	1.85	1.86
UT12-6-12TN-1	3/4	3/8	3/4	.25	4.31	2.18	2.13	1.76
UT12-8-12TN-1	3/4	1/2	3/4	.38	4.31	2.18	2.13	1.86
UT12-12-12TN-1	3/4	3/4	3/4	.63	4.31	2.18	2.13	2.18
UT16-12-16TN-1	1	3/4	1	.63	5.47	2.70	2.77	2.18
UT16-16-16TN-1	1	1	1	.88	5.47	2.70	2.77	2.70
