PFA Part No. |
PVDF Part No. |
Tube O.D. |
Tube O.D. |

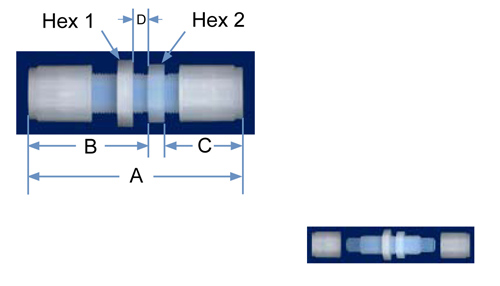

Orifice | A | B | C |
D
(Max)
|
Hex 1 | Hex 2 |
| SPM44N-1 | SPM44 | 1/4 | 1/4 | .15 |
3.43
|
1.96
|
1.18
|
.50
|
3/4 | 11/16 |
| SPM66N-1 | SPM66 | 3/8 | 3/8 | .25 | 3.60 | 2.03 | 1.28 | .50 | 15/16 | 13/16 |
| SPM88N-1 | SPM88 | 1/2 | 1/2 | .38 | 3.83 | 2.16 | 1.38 | .50 | 1-1/16 | 15/16 |
| SPM1212N-1 | SPM1212 | 3/4 | 3/4 | .63 | 4.07 | 2.28 | 1.50 | .50 | 1-5/16 | 1-3/16 |
| SPM1616N-1 | SPM1616 | 1 | 1 | .88 | 4.53 | 2.52 | 1.72 | .50 | 1-3/4 | 1-5/8 |
