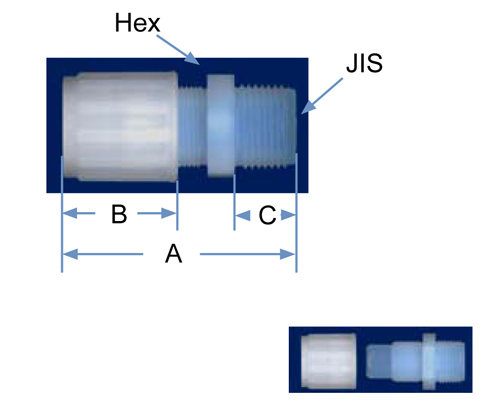

| PFA Part No. |
Tube O.D. |
JIS Size | Orifice | A | B | C | Hex |
|
MC4-4JN-1 |
1/4 | 1/4 | .15 |
2.02
|
1.18
|
.55
|
5/8 |
| MC4-6JN-1 | 1/4 | 3/8 | .15 | 2.02 | 1.18 | .55 | 11/16 |
| MC4-8JN-1 | 1/4 | 1/2 | .15 | 2.13 | 1.18 | .66 | 15/16 |
| MC6-4JN-1 | 3/8 | 1/4 | .25 | 2.12 | 1.28 | .55 | 13/16 |
| MC6-6JN-1 | 3/8 | 3/8 | .25 | 2.12 | 1.28 | .55 | 13/16 |
| MC6-8JN-1 | 3/8 | 1/2 | .25 | 2.23 | 1.28 | .66 | 15/16 |
| MC8-4JN-1 | 1/2 | 1/4 | .38 | 2.22 | 1.38 | .55 | 15/16 |
| MC8-6JN-1 | 1/2 | 3/8 | .38 | 2.22 | 1.38 | .55 | 15/16 |
| MC8-8JN-1 | 1/2 | 1/2 | .38 | 2.33 | 1.38 | .66 | 15/16 |
| MC8-12JN-1 | 1/2 | 3/4 | .38 | 2.34 | 1.38 | .67 | 1-3/16 |
| MC12-8JN-1 | 3/4 | 1/2 | .55 | 2.45 | 1.50 | .66 | 1-3/16 |
| MC12-12JN-1 | 3/4 | 3/4 | .63 | 2.46 | 1.50 | .67 | 1-3/16 |
| MC12-16JN-1 | 3/4 | 1 | .63 | 2.64 | 1.50 | .85 | 1-7/16 |
| MC16-12JN-1 | 1 | 3/4 | .66 | 2.68 | 1.72 | .67 | 1-7/16 |
| MC16-16JN-1 | 1 | 1 | .88 | 2.86 | 1.72 | .85 | 1-7/16 |
