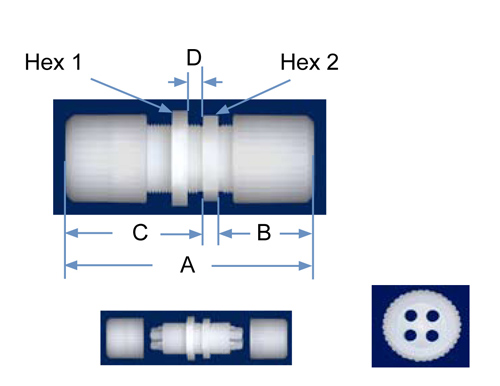

| PVDF Part No.. | Tube O.D | Ports | Orifice | A | B | C | D (Max) | Hex 1 | Hex 2 | Hole Size Required |
| MSUPM4-2 | 1/4 | 2 | .15 | 4.13 | 1.60 | 2.30 | .50 | 1-3/8 | 1-1/4 | 1-1/8 |
| MSUPM4-3 | 1/4 | 3 | .15 | 4.13 | 1.60 | 2.30 | .50 | 1-3/8 | 1-1/4 | 1-1/8 |
| MSUPM4-4 | 1/4 | 4 | .15 | 4.13 | 1.60 | 2.30 | .50 | 1-1/2 | 1-3/8 | 1-1/4 |
| MSUPM4-6 | 1/4 | 6 | .15 | 4.13 | 1.60 | 2.30 | .50 | 1-3/4 | 1-5/8 | 1-1/2 |
